SMS Union
01

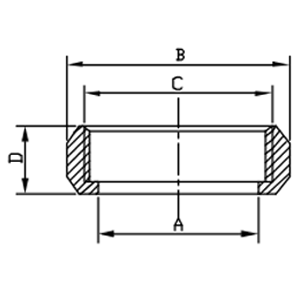

NUT
| SIZE | INNER DIA 'A' |
OUTER DIA 'B' |
INNER DIA 'C' |
TOTAL LENGTH 'D' |
|---|---|---|---|---|
| 25.4 | 32.0 | 51.0 | RD40x1/6 | 20.0 |
| 38.1 | 48.0 | 74.0 | RD60x1/6 | 25.0 |
| 50.8 | 60.5 | 84.0 | RD70x1/6 | 26.0 |
| 63.5 | 74.0 | 100.0 | RD85x1/6 | 30.0 |
| 76.2 | 87.0 | 114.0 | RD98x1/6 | 32.0 |
| 101.6 | 117.0 | 154.0 | RD132x1/6 | 30.0 |
02

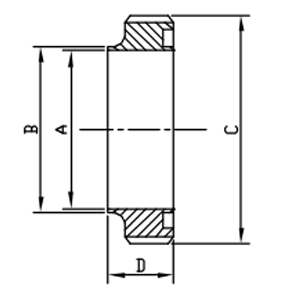

WELDABLE MALE PART
| SIZE | INNER DIA 'A' |
OUTER DIA 'B' |
OUTER DIA 'C' |
TOTAL LENGTH 'D' |
|---|---|---|---|---|
| 25.4 | 22.5 | 25.6 | RD40x1/6 | 15.0 |
| 38.1 | 35.5 | 38.3 | RD60x1/6 | 20.0 |
| 50.8 | 48.5 | 51.0 | RD70x1/6 | 20.0 |
| 63.5 | 60.5 | 63.7 | RD85x1/6 | 24.0 |
| 76.2 | 73.1 | 76.3 | RD98x1/6 | 24.0 |
| 101.6 | 97.6 | 101.8 | RD132x1/6 | 30.0 |
03

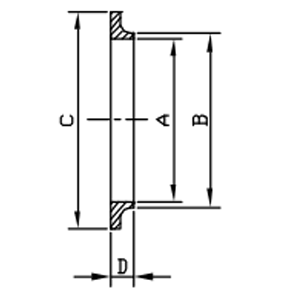

WELDABLE LINER
| SIZE | INNER DIA 'A' |
OUTER DIA 'B' |
OUTER DIA 'C' |
TOTAL LENGTH 'D' |
|---|---|---|---|---|
| 25.4 | 22.5 | 25.6 | 35.5 | 8.0 |
| 38.1 | 35.5 | 38.3 | 55.0 | 9.0 |
| 50.8 | 48.5 | 51.0 | 65.0 | 9.0 |
| 63.5 | 60.5 | 63.7 | 80.0 | 9.0 |
| 76.2 | 73.1 | 76.3 | 93.0 | 10.0 |
| 101.6 | 97.6 | 101.8 | 127.0 | 12.0 |
04

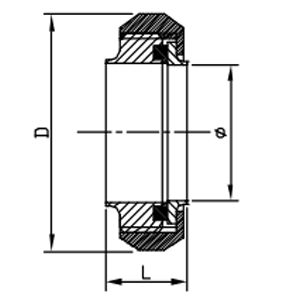

WELDABLE UNION
| SIZE | Ø | DIAMETER 'D' |
TOTAL LENGTH 'L' |
|---|---|---|---|
| 25.4 | 25.4 / 1" | 51.0 | 24.0 |
| 38.1 | 38 / 1 1/2" | 74.0 | 30.0 |
| 50.8 | 51 / 2" | 84.0 | 30.0 |
| 63.5 | 63 / 2 1/2" | 100.0 | 34.0 |
| 76.2 | 76 / 3" | 114.0 | 35.0 |
| 101.6 | 101 / 4" | 154.0 | 43.0 |
